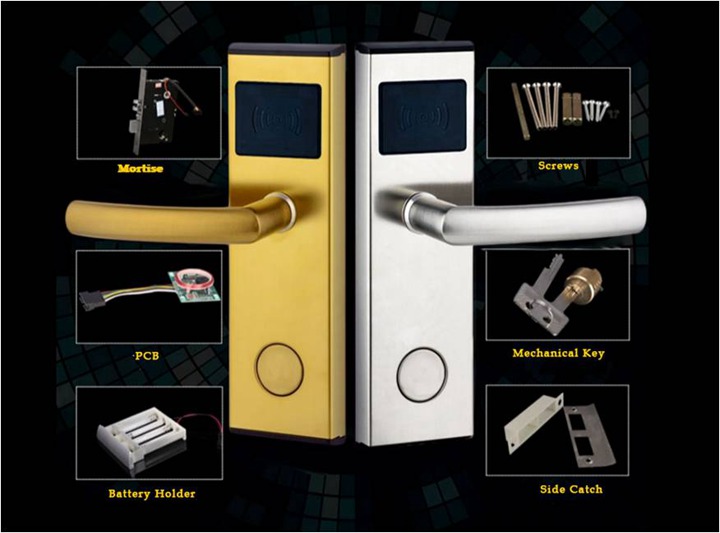

Rfid Lock "Legend"

This high quality system is replacing Keys and  provides fuel economy of power

The door opened safely, placing first in electronic card slot on the door and then to pocket card readers into the hotel room to provide power. The card carries electronic chip with a metal housing of the circuit contains a unique code Laser etched to ensure the uniqueness of the key and the inviolability of the door. When leaving the room, removing the card from the case, after 50 seconds off the power supply, so that lights, air condition, TV, electric eye, radio etc. unrefrigerated close automatically.

If the air conditioner and open the balcony door or window, then after 20 seconds cut off the supply current to the air conditioning. By closing the doors immediately supplied to the air stream.

The electronic card is metallic from European bronze, 1mm thick, engraved logo Hotel. The electronic circuit includes a microprocessor and 2 high power relays to control the lights and air conditioning.

The system is easily installed on existing electrical installations without major repair works and its function is no longer secure (12V DC) and completely silent.

Rf Proximity security code to avoid violation

Automatic card cancellation at the end of the residence time

Led lights for door unlocking and low voltage,

Includes real-time clock for accurate time,

Registration openings, emergency unlocking function

Specification

• Color: silver, gold

• Material: stainless steel

• Door thickness: 38 ~ 60 mm adjustable

• Working voltage: 6V (4pcs AA alkaline batteries)

• Static current: < 30uA

• Dynamic current: < 300mA

• Battery life: 7-10 months

• Reading distance: < 25 mm

• Operating temperature: -20 ° C ~ 75 ° C

• Operating humidity: < 80%

• Lock type: Card Encoder Hotel door lock

Application: hotels, apartments, Office, home etc
